Demystifying technical debt: a strategic and economic perspective
Technical debt isn't just about bad code, it's a strategic choice similar to taking on financial debt to gain leverage.
The discussion on "technical debt" at the Open Space event by @bcnswcraft underscores the necessity of comprehending this concept with greater sophistication. Often reduced to a simplistic label for poor-quality code, the original notion of technical debt, as introduced by Ward Cunningham, entails far deeper strategic implications. The analogy with financial debt transcends code quality and includes deliberate decision-making regarding investment in software development.
In the article "Toward a Galvanizing Definition of Technical Debt" by Michael Feathers, he says:
In Ward Cunningham’s original formulation, Technical Debt was the accumulated distance between your understanding of the domain and the understanding that the system reflects.
…
We all start out with some understanding of a problem, and we write code to solve that problem. But, we learn as we go. If the code doesn’t keep up with that learning we continually stumble over a conceptual gulf when we add new features. The cost of adding features becomes higher and higher. Eventually, we simply can’t.
While Feather’s definition is.
Technical Debt is the refactoring effort needed to add a feature non-invasively
Semantic diffusion: recovering the original meaning of technical debt
The concept of "technical debt" has experienced significant "Semantic Diffusion", which reflects the reality that many people today struggle to discern the difference between technical debt and legacy code, often treating them as the same when they are not. While Martin Fowler mentions the evolving interpretations of technical debt in various contexts, his writings have no explicit statement about a widespread semantic diffusion for this specific term. Nonetheless, the misinterpretation exists, and this lack of distinction can lead to misaligned strategies in managing software systems effectively. Semantic diffusion occurs when the initial meaning of a metaphor evolves into varied interpretations, leading to ambiguity and loss of specificity. Cunningham’s original metaphor has, over time, been co-opted to describe a myriad of code-related issues, often leading to misunderstandings in both technical and business spheres. For effective communication and management, it is imperative to re-establish a shared understanding of what constitutes technical debt. Ward Cunningham originally employed this metaphor within a banking context, intentionally adopting language accessible to executives, thereby facilitating conversations about the necessity of investing time in improving existing code.
In his article "Toward a Galvanizing Definition of Technical Debt" Feather mentions this.
For a while, I’ve been using a different definition of Technical Debt. It helps teams frame their work in a way that highlights their choices and it can lead to better ones.
Leading us to understand why the term “Technical Debt“ has suffered from semantic diffusion.

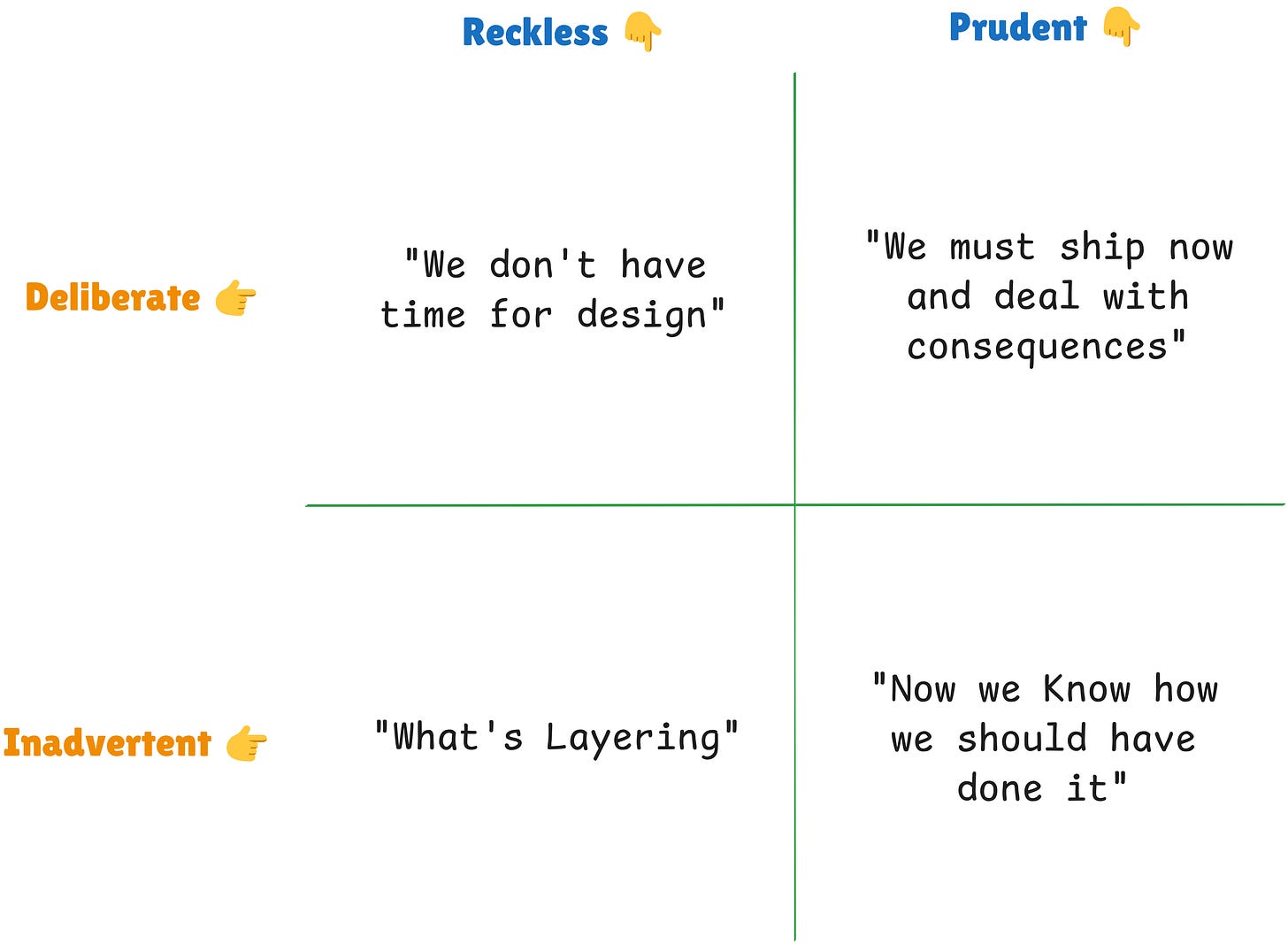

Martin Fowler, in his article "Technical Debt Quadrant", refines our understanding by categorizing technical debt across two dimensions: prudent vs. reckless and deliberate vs. inadvertent. Such a taxonomy clarifies the origins of technical debt and helps devise appropriate management strategies. For instance, deliberate and prudent technical debt is incurred as part of a calculated strategy, while inadvertent and reckless debt often results from hasty, poorly considered decisions.
Technical debt as an investment: a strategic approach
Dave Farley, in his presentation "Types Of Technical Debt & How To Manage Them," provides a nuanced differentiation between types of technical debt and their broader implications for business decisions. Farley underscores that not all technical debt is inherently negative. Indeed, technical debt can serve as a strategic instrument for short-term gain, provided that a defined plan for repayment is in place (this is the original meaning of Cunningham’s definition). For example, a development team might choose to use a less optimal but faster-to-implement solution to meet an urgent market deadline, fully aware that they will need to revisit and refactor this code later. This type of decision can be compared to a "family loan" - a debt that is manageable and taken with foresight. Farley likens some debts to loans from close family members - easily deferred without immediate severe consequences - while others resemble high-interest loans that, if left unmanaged, can threaten the stability of ongoing development.
Farley categorizes technical debt into three main types:
Family loan: This type of debt represents technical shortcuts taken with a clear understanding and minimal consequences. These are manageable debts, similar to a loan from a supportive family member who may not charge interest or demand immediate repayment.
Bank loan: This type of debt is more structured and carries an interest rate. It represents deliberate decisions where trade-offs are made, but there is a plan to address the debt in the future. Interest accrues over time, making it critical to repay these debts before they significantly hinder productivity.
Loan shark: This represents the most dangerous form of technical debt - often taken under duress or without a clear understanding of the consequences. The interest rates are exorbitant, and the risk of negative impact is severe. Such debt, if not repaid promptly, can lead to serious technical insolvency, making the system difficult to change and maintain.
By using these categories, Farley illustrates how different types of technical debt require different management strategies and levels of urgency in addressing them.

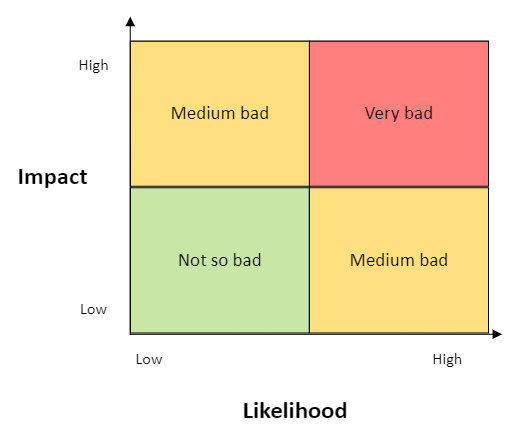

While Dave Farley's loan categories articulate the predictability and urgency of various types of debt, Matts and Freeman take the concept further by comparing bad code to an unhedged call option. In financial terms, a call option provides the holder the right, but not the obligation, to buy an asset at a specific price in the future. However, if the option is unhedged, it exposes the investor to uncontrolled risks. In software, this translates to situations where bad code offers no guarantee of return and may result in significant, unexpected costs.
This metaphor highlights that:
Uncontrolled growth of risk: Unlike manageable debt, bad code does not have a structured repayment plan. Its risks increase unpredictably as the codebase evolves, much like the volatility of an unhedged financial option.
Dependence on future contexts: The cost of maintaining or improving bad code depends on future changes and system interactions, making its actual "cost" unknowable upfront.
Inability to mitigate risk: Without tests, documentation, or refactoring efforts, the risks associated with bad code are left entirely unhedged, making it difficult to evaluate or manage.
Luis Artola, in his work "Software Economics," advocates for an economic lens through which to view software development. He contends that the primary objective for developers is to safeguard the investment made in software. In this view, technical debt becomes a variable among several economic factors influencing the ultimate success of a software project.
Bob Salmon introduces the concept of technical debt as a risk of friction in his blog article "Tech Debt as Risk of Friction". This perspective frames technical debt as an element that creates friction in the development process, impeding progress and leading to increased costs as complexity grows. Managing this friction effectively is critical for maintaining agility and sustaining growth.
Andrew Brown, in his book "Taming Your Dragon: Addressing Your Technical Debt," emphasizes the psychological and organizational dimensions of technical debt. He argues that technical debt is often a reflection of deeper systemic issues within a team's culture, such as fear of change, insufficient support for learning, and unrealistic deadlines. Brown highlights that technical debt should be approached not just as a technical problem, but as an organizational challenge requiring buy-in from both developers and stakeholders. This perspective aligns technical debt management with broader concepts of continuous improvement and cultural change, advocating for an environment that encourages incremental progress and prioritizes technical excellence as a shared value.
Brown also notes that the metaphor of technical debt should include a focus on the cognitive load faced by developers. As debt increases, so does the cognitive overhead required to make changes, which can lead to burnout and decreased productivity. Addressing this aspect of debt management requires teams to adopt practices like refactoring as a regular activity and not as an exceptional effort, thereby ensuring that cognitive complexity is kept in check.
Types of Technical Debt and Their Impact on Liquidity
Farley further differentiates technical debt as deliberate or accidental. Deliberate technical debt, such as that incurred when launching a Minimum Viable Product (MVP) to validate a business hypothesis, can be advantageous if prudently managed. Conversely, accidental technical debt - often stemming from a lack of expertise or high-pressure circumstances - can create long-term obstacles. Such a distinction enables teams to prioritize which debts to address first based on their prospective impact on ongoing development and the company’s agility.
Artola introduces the concept of liquidity as an essential economic factor in software projects. Liquidity, in this context, refers to the development team's capability to perform rapid, continuous, and incremental value deliveries easily. Just as a healthy financial market is characterized by the ability to perform transactions smoothly and with many participants, a software team with high liquidity can quickly respond to changes, make adjustments, and deliver value without excessive friction. Unaddressed technical debt reduces liquidity, escalating costs and complexity with each incremental change, ultimately hindering the ability to deliver value efficiently.
Technical debt as a business problem
Adam Tornhill, in his analysis of the semantic diffusion of "technical debt," concurs with Farley in highlighting that it has devolved into a generalized descriptor for diverse coding issues. This imprecision in language can obstruct productive communication between technical teams and business stakeholders.
Both Tornhill and Artola emphasize the importance of framing the impact of technical debt in economic terms. Rather than focusing solely on code quality, it is crucial to articulate how technical debt influences the team's capacity to deliver business value, mitigate risk, and sustain liquidity.
Martin Fowler, in his reflections on semantic diffusion, stresses that clear definitions help align cross-functional teams. A shared understanding of what constitutes technical debt is vital for making informed, strategic decisions that impact both software quality and business outcomes.
Fowler, in his book "Refactoring: Improving the Design of Existing Code," highlights that refactoring is an essential tool for managing technical debt by systematically improving code quality without altering its external behavior. Refactoring reduces the accumulation of hidden complexity, making systems more maintainable and lowering the "interest payments" of technical debt. Fowler argues that consistent, incremental refactoring efforts help prevent technical debt from reaching critical levels that could jeopardize project health.
Strategic approaches to managing technical debt
Dave Farley suggests a pragmatic, strategic approach to managing and prioritizing technical debt. Instead of striving to eliminate all debt indiscriminately, Farley recommends identifying those debts that impose the greatest negative impact and addressing them as a priority. The decision of when to repay technical debt, he asserts, should be informed by both urgency and utility. In some cases, low-impact debt - residing in static areas of the system - can be deferred without significant repercussions.
Adam Tornhill, in his discussion "Prioritize Technical Debt Like Time and Money Matter," advocates for a data-driven methodology to pinpoint and rank technical debt. His approach referred to as "behavioral code analysis," identifies "hotspots" - those complex regions of the codebase subject to frequent modifications. Tornhill’s emphasis on visualizing technical debt through behavioral analysis tools helps teams prioritize based on real impact, rather than subjective judgments.
Artola further underscores the importance of knowledge management within development teams. Knowledge silos concentrated in specific individuals create "bottlenecks" that restrict liquidity and elevate risks for the entire system. He says that liquidity among team members is reflected in how quickly and easily its members can exchange tasks.
Kevlin Henney, in his presentation "How to Manage Technical Debt," echoes Artola by advocating for a continuous management philosophy. Integrating code improvement and refactoring as routine parts of the workflow ensures that technical debt remains manageable and prevents it from accumulating into an insurmountable issue. Henney’s focus on continuous integration and routine improvements aligns well with Lean principles and ensures that debt does not become an overwhelming burden.
Andrew Brown also introduces the concept of "debt repayments as part of daily work." This approach emphasizes integrating small, regular improvements into the daily workflow, similar to Fowler's emphasis on refactoring. Such consistency is vital for keeping technical debt under control without overwhelming the team or derailing ongoing feature development.
Mary and Tom Poppendieck also contribute to the understanding of technical debt management through their Lean principles, particularly their focus on minimizing waste. In Lean software development, any activity that does not directly add value to the customer is considered waste, and this is particularly applicable to technical debt - especially when it is generated unconsciously. The Poppendiecks highlight that unconscious technical debt, resulting from rushed or uninformed decisions, often leads to significant rework. This rework is a form of waste that not only consumes resources but also reduces the system's ability to deliver value effectively.
The Poppendiecks emphasize that rework, if not addressed proactively, can snowball into a larger issue, significantly impacting the efficiency and agility of development teams. They advocate for early detection and resolution of technical debt to prevent waste accumulation. This approach is akin to practices in Lean manufacturing, such as Jidoka (autonomation), where defects are addressed immediately to prevent a cascading impact on the production line. By treating technical debt with the same urgency - identifying and resolving it as soon as it appears - teams can avoid the pitfalls of uncontrolled debt accumulation, thereby maintaining a high level of liquidity and reducing friction in ongoing development.
TDD as a tool for managing technical debt
Fran Iglesias, in his books "Testing y TDD para PHP" and "Learn Test Driven Development," introduces Test Driven Development (TDD) as a pivotal tool for mitigating technical debt. TDD inherently promotes a modular, maintainable design by mandating the creation of tests before writing the corresponding production code.
Kent Beck, in "TDD by Example", elaborates on how TDD compels developers to make ongoing design decisions, thereby reducing the likelihood of accruing technical debt. Each test prompts an opportunity for design improvement, fostering reduced system complexity and ensuring that the code base remains adaptive to future requirements.
By treating tests as first-class citizens, developers ensure that tests are not merely supplementary but are integral to the development process. This approach reduces cognitive overhead and prevents the accumulation of reckless technical debt. Dave Farley also supports this idea, noting that making tests first-class citizens allows teams to focus on critical factors like feedback, maintainability, and confidence. A solid test suite reduces the risk of unintended consequences when making changes, thereby lowering the "interest payments" on technical debt.
The tests are not afterthoughts or secondary to the application code. They are peers, with as much thought and care required in their design as the application logic itself.
- Kent Beck (TDD by Example)
Types of reckless and prudent debt: managing the cultural and psychological Barriers

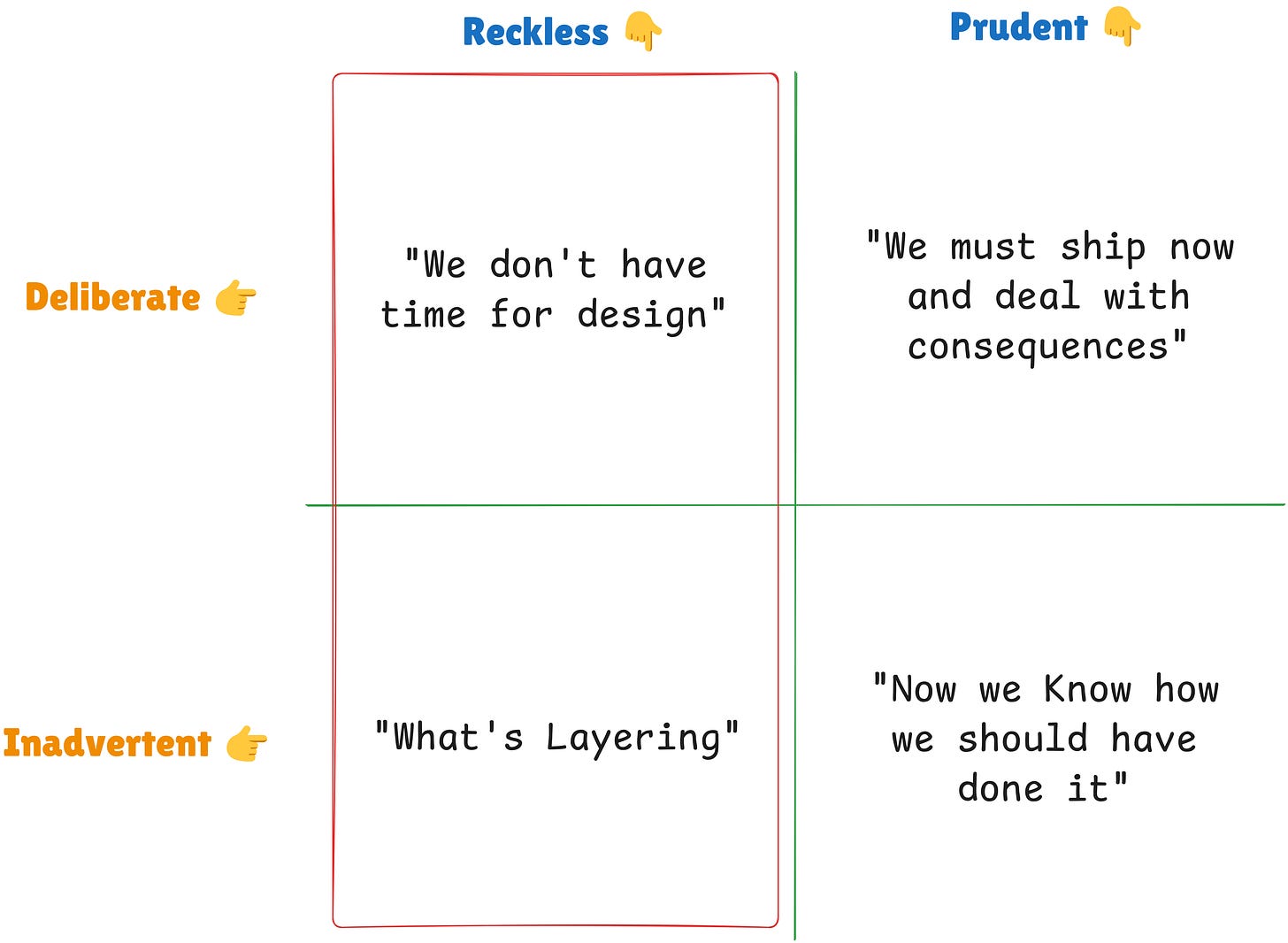

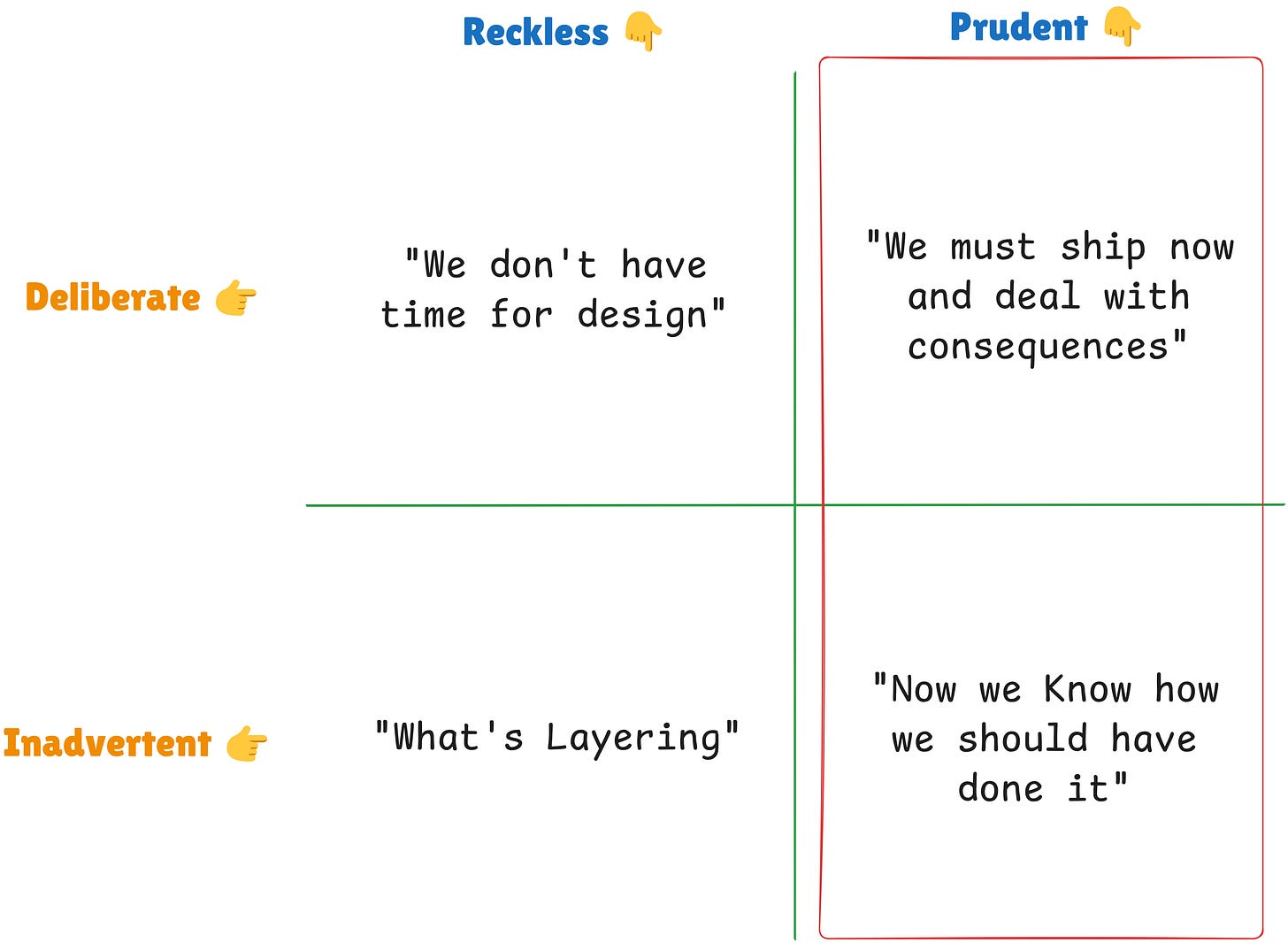

As Martin Fowler outlines in his "Technical Debt Quadrant", different types of debt require different management strategies. Understanding whether the debt is reckless or prudent - and whether it is deliberate or inadvertent - helps guide the appropriate interventions.
Reckless - deliberate debt, often stems from a culture where shortcuts are taken without considering future implications. This can indicate a lack of professional responsibility or an underestimation of long-term risk. To mitigate this, fostering a culture of professionalism, and emphasizing risk management, responsibility, and accountability is essential. Andrew Brown, in his book Taming Your Dragon: Addressing Your Technical Debt, suggests that recklessness in technical decisions often reflects deeper systemic cultural issues, such as unrealistic deadlines, fear of change, or insufficient prioritization of technical quality. Addressing these systemic issues is key to effectively managing reckless debt.
A bad system will beat a good person every time
- W. Edwards Deming
Reckless - inadvertent debt is frequently a result of gaps in knowledge, either at the individual or team level. This shows the importance of continuous learning and the development of a culture that encourages growth. Tools such as pair programming, mob programming, and a culture of knowledge sharing (e.g., book clubs and katas) can effectively close these gaps. Brownrown also notes that recklessness often arises when developers do not have adequate knowledge-sharing practices in place, making techniques like pair programming particularly effective.
In terms of prudent debt, even deliberate, well-managed technical debt needs prioritization sessions to ensure it is addressed in alignment with business needs. Utilizing tools like the MoSCoW Method or the RICE Scoring Model can help prioritize effectively, focusing on the debt that has the most significant impact on business value and team productivity.
Strategic Tools for Addressing Technical Debt
Reckless technical debt
For reckless-deliberate debt: Utilizing metrics such as lead time, deployment frequency, and number of defects introduced can help in understanding the scale of the problem. Additionally, adopting Test-Driven Development and mutant testing as indicators of test robustness are valuable in maintaining high-quality code.
For reckless-inadvertent debt: Techniques like pair/mob programming can be highly beneficial. Rotating pairs through a pairing matrix ensures that knowledge flows freely across the team, preventing silos and fostering a culture of collective ownership.
Prudent technical debt
For Prudent Debt: Andrew Brown, in his book Taming Your Dragon: Addressing Your Technical Debt, suggests that prudent debt must be approached as an opportunity for strategic investment. It requires a clear and structured plan for repayment to prevent it from escalating into a larger issue. Brown emphasizes the importance of regular review sessions and transparent communication with stakeholders to ensure everyone understands the potential impacts of the debt and how it will be managed. Scheduled technical debt prioritization sessions and using team agreements like the 2 Feature, 1 Chore rule help balance feature development with technical improvements, ensuring that addressing technical debt is a constant part of the development process rather than an afterthought.
Understanding principal and interest in technical debt
In the context of Managing Technical Debt: Reducing Friction in Software Development, the concepts of principal and interest are key to understanding the economic implications of technical debt:
Principal: The principal refers to the initial cost avoided when a quick decision or less-than-ideal solution is implemented. It is the cost of work deferred to the future, meaning it represents what must eventually be paid to eliminate technical debt.
Interest: The interest is the additional cost that accumulates because of the continued presence of the technical debt. This cost manifests as reduced productivity and increased complexity whenever new features are added or errors are fixed. Essentially, it represents the extra effort that a team must expend each time they work on a system that contains technical debt.
The book outlines how these concepts evolve across several stages in the lifecycle of a project:
Step 1: Incurring some initial debt: This step involves the decision to take on technical debt, usually to meet a deadline or deliver a feature quickly. At this stage, the principal is incurred - the cost of the work that was not completed initially.
Step 2: Evolving the system and facing the debt: As the system evolves, the impact of the technical debt begins to surface. The interest accumulates in the form of additional effort and risk each time the team needs to modify or extend the affected parts of the system.
Step 3: Deciding how to treat the debt: At this point, the team must decide whether to pay off the technical debt or continue paying only the interest. This involves a cost-benefit analysis: Is it more economical in the long run to pay the principal and refactor, or can the accumulating interest be managed without compromising overall quality?
Step 4: Just paying interest: In some cases, the team may decide that the interest is manageable and opt not to pay the principal. This strategy might make sense if the area affected by the debt is not critical. However, it has the disadvantage that the interest may grow over time, eventually impacting productivity.
Martin Fowler, in his article "Is High Quality Software Worth the Cost?", explores the trade-offs between software quality and the associated costs. Fowler argues that high-quality software ultimately reduces the overall cost of development and maintenance, as it allows teams to evolve the system more efficiently and minimizes technical debt. He emphasizes that investing in quality from the outset can prevent a buildup of debt that becomes costly to manage over time. This perspective highlights the value of technical excellence as not just a moral or aesthetic choice, but an economically sound one.
Fowler’s point aligns well with the idea that technical debt should be managed proactively rather than reactively. By ensuring that software is of high quality, teams can avoid the exponential growth of "interest" costs as systems become more entangled and harder to modify. Thus, investing in quality is an effective strategy to mitigate the risks and costs associated with technical debt.
Cost and value
Cost: The cost includes both the principal (the effort required to eliminate the technical debt) and the interest (the additional effort required each time work is done on the system). These costs directly impact the team's ability to efficiently deliver value.
Value: Value is related to the functionality delivered to the customer and the quality of the system. Incurring technical debt can provide immediate value by quickly delivering a solution, but this value may diminish if the debt is not managed well. Paying off technical debt increases the future value of the system by making it easier to evolve and maintain.
Based on my analysis of the "Code Red: The Business Impact of Code Quality" study by Tornhill and Borg, and the second edition of "Your Code as a Crime Scene", here are the key impacts of technical debt on productivity, code quality, and business outcomes:
Wasted developer time:
Studies show that 23-42% of developers' time is wasted managing technical debt consequences. This inefficiency means a team of 100 engineers effectively operates as only 58 developers due to technical debt-related issues.
Increased defects and longer development time:
Low-quality code has up to 15 times more defects than high-quality code. Tasks in low-quality code take 124% longer to complete, significantly impacting time-to-market and efficiency.
Unpredictability in development:
Low-quality code leads to higher variability in task completion times, making project planning difficult and increasing organizational stress.
Business and financial impact:
In the U.S., low-quality software costs an estimated $2.84 trillion annually. Organizations suffer from increased costs due to unplanned work, with resources diverted to fixing defects rather than innovation.
Misaligned priorities:
Organizations often undervalue technical debt management due to unclear business implications. The lack of standardized code quality and technical debt metrics leads managers to favor short-term gains over long-term sustainability.
Key Recommendations:
Quantify business impact: Link technical debt to business outcomes through metrics like time-to-market and customer satisfaction. CodeScene's Code Health metric effectively demonstrates these impacts.
Prioritize refactoring with business goals: Show how technical debt reduction aligns with organizational objectives by focusing on development cycle times and defect reduction.
Track and communicate: Create clear visualizations of technical debt impact to gain stakeholder support for technical improvements.
These findings emphasize the importance of proactively addressing technical debt to prevent cascading inefficiencies and align software development with business objectives.

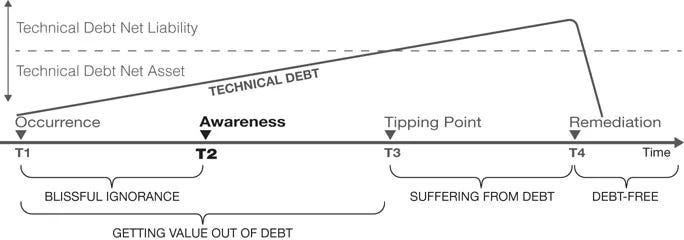

Technical debt over time: understanding Its lifecycle
Technical debt evolves like financial debt, and understanding its progression is crucial for effective management. Just as financial debt accrues interest and needs strategic repayment, technical debt follows a similar path with distinct phases. By examining these phases, we can better understand their impact and develop appropriate solutions.
Phases of Technical Debt
T1: The moment of debt introduction (Blissful Ignorance) This is when technical debt first appears, typically to achieve short-term goals like meeting deadlines or shipping an MVP. When deliberate and well-understood, it embodies Ward Cunningham's metaphor: "We choose to go faster now, knowing we'll pay for it later."Yet technical debt isn't always intentional. When T1 occurs unconsciously, due to knowledge gaps or underestimated impacts, it creates hidden costs that may surface much later.
T2: awareness of the debt: This phase marks when the team recognizes the debt's existence. Early awareness after T1 keeps the debt manageable, like a low-interest loan with a clear repayment plan. A significant gap between T1 and T2, however, can leave teams in a loan-shark scenario, facing mounting costs without understanding their source. This highlights why early detection through education and metrics is vital. From my point of view, we should try to avoid getting here, as much as possible.
T3: The tipping point (suffering from debt) Here, the cost of carrying technical debt surpasses its initial benefits. The debt's "interest" appears as slower development, rising complexity, and team frustration. Ignoring debt at T3 risks technical "default", where the system becomes unmaintainable.
T4: Debt remediation (becoming debt-free) The best approach is addressing debt (T4) before hitting the tipping point (T3). This reduces friction and maintains system adaptability. Delayed action after T3 leads to prolonged productivity losses and team strain. Swift intervention is key to maintaining sustainable development.
Lessons for Managing Technical Debt Over Time
Understanding the timeline of technical debt helps teams prioritize and address it effectively:
Early detection: Recognizing debt at T2 allows for proactive management, reducing long-term costs.
Strategic remediation: Addressing debt before T3 ensures the team maintains its agility and avoids unnecessary suffering.
Continuous monitoring: Metrics and tools like behavioral code analysis can identify hotspots and highlight when debt becomes unsustainable.

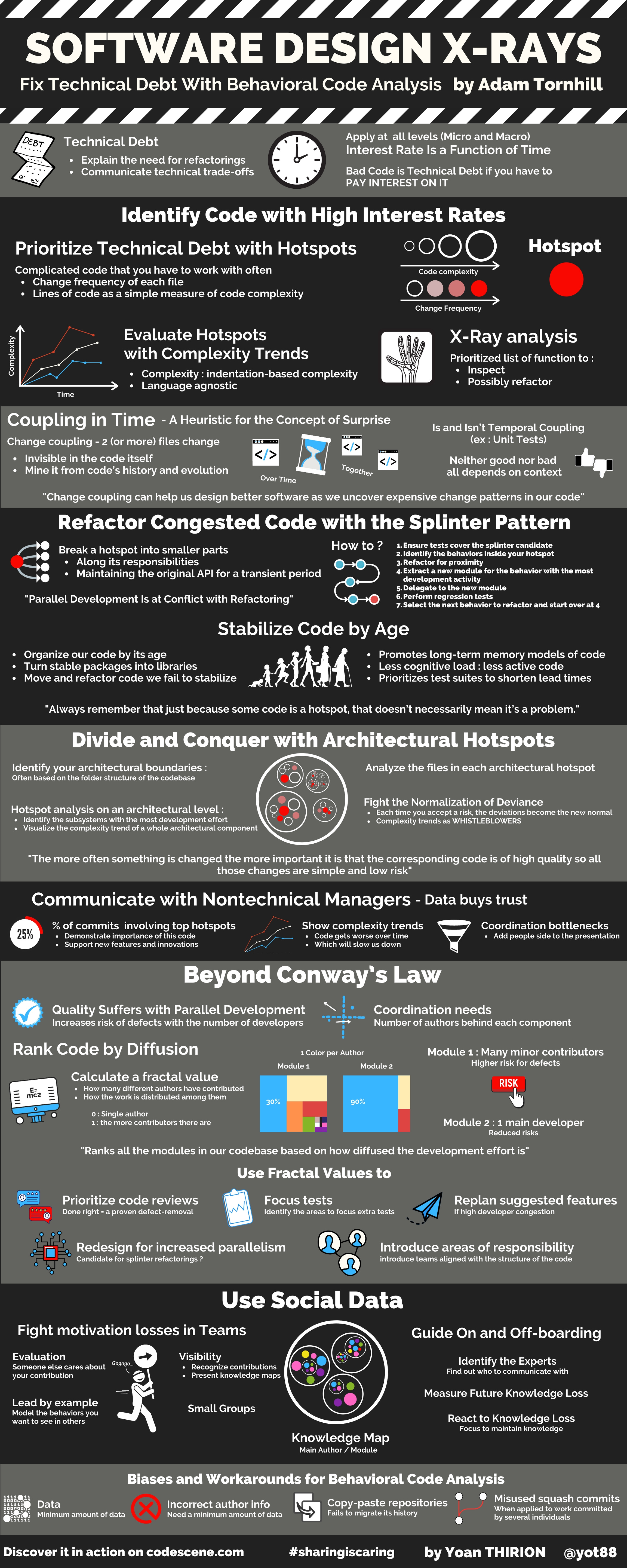

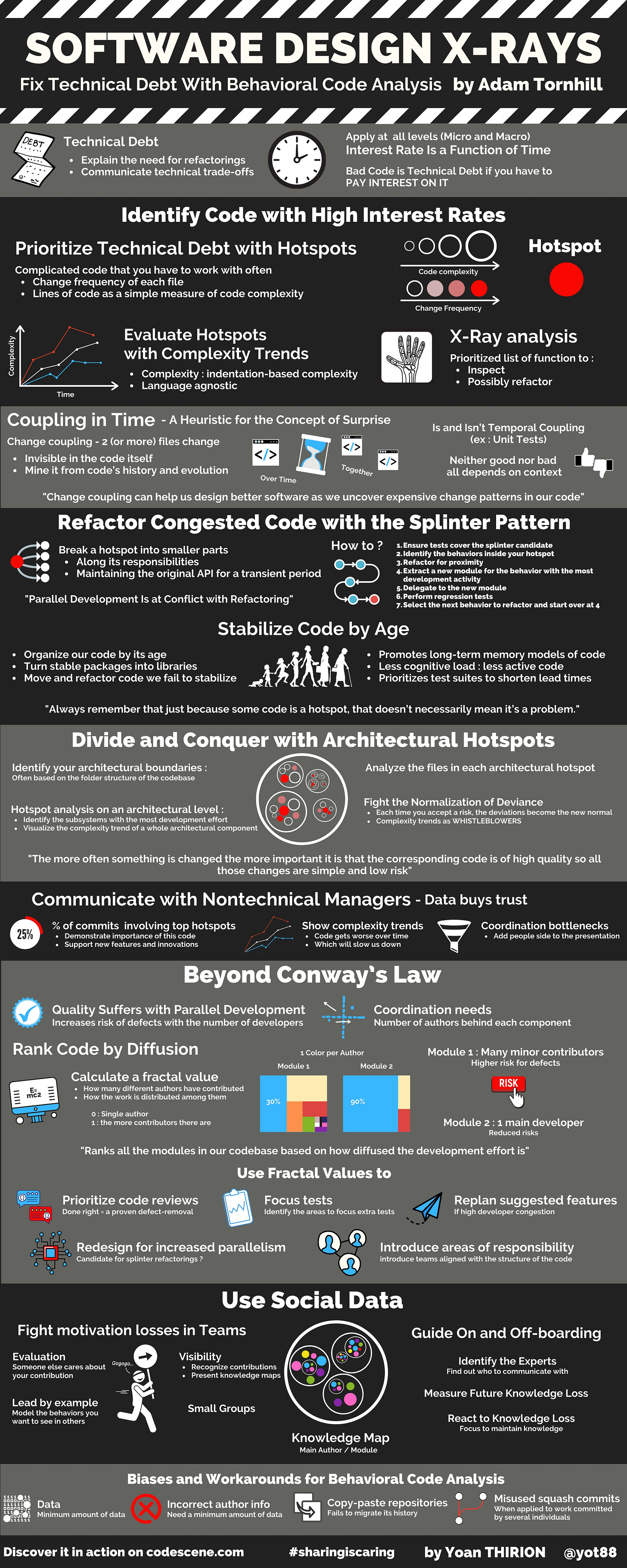

Techniques to manage technical debt
Hotspot analysis:
Adam Tornhill described the hotspot analysis technique, which revolves around identifying complex areas of the codebase that are frequently modified. These "hotspots" often concentrate a significant portion of development effort and represent key areas of technical debt.
To conduct a hotspot analysis:
Version control data: Utilize version control history to analyze which files are frequently modified. Tornhill emphasizes that change history is a window into system behavior, capable of revealing design flaws or unwanted dependencies.
Key indicators: Look for patterns in the change history, such as simultaneous modifications across multiple files. These patterns often indicate architectural flaws, like a lack of cohesion or excessive coupling between modules.
Practical enhancement:
Continuous integration: Automate the identification of hotspots with tools like CodeScene. Such tools generate visual representations that make it easier to understand the areas of the system that require urgent attention.
Guided refactoring: Prioritize the refactoring of these hotspots to reduce complexity, prevent bottlenecks, and improve the maintainability of the code.
Temporal coupling analysis:
Temporal coupling analysis is another powerful technique that identifies modules that frequently change together, highlighting a strong dependency between them.
To perform effective temporal coupling analysis:
Synchronous change patterns: Tornhill points out that if certain files tend to change together consistently, it indicates an underlying connection—perhaps an implicit dependency that is not well-represented in the architecture.
Reducing coupling: These modules often need refactoring to eliminate hidden dependencies and enhance cohesion. If two modules experience recurrent temporal coupling, a viable option may be to either combine them or find a new abstraction point to decouple them.
Practical enhancement:
Dependency diagrams: Use tools to visualize and reduce coupling complexity. Tools like CodeScene help visualize temporal coupling patterns to identify components with overly strong relationships.
Refactoring for modularity: Consider breaking down responsibilities into smaller modules to eliminate unnecessary dependencies, thus reducing temporal coupling.
Change frequency analysis:
Change frequency analysis examines which files or modules are subject to constant modification, indicating potentially high technical debt.
Key details:
Modification frequency: Tornhill highlights that if parts of the codebase are continually modified, they might be poorly designed or contain too many responsibilities. These modules often become pain points within the system, generating high friction when implementing changes.
Identifying refactoring opportunities: Monitor the frequency of changes and prioritize heavily modified modules for refactoring to make them more manageable and less prone to bugs.
Practical enhancement:
Complexity management: Use complexity metrics, such as cyclomatic complexity, to determine whether the problem is related to intricate logic that needs simplification.
Test-Driven Development (TDD): Apply TDD to these modules to ensure that each change is made with the highest quality, thereby reducing the need for future modifications.
Code churn analysis:
Code churn analysis investigates frequent modification patterns, which may predict areas prone to defects.
Key details:
Modification patterns: Tornhill argues that areas with high churn are critical and require careful assessment to understand the root cause of the frequent changes. Often, this is due to architectural ambiguity or code that fails to adapt well to evolving system requirements.
Maintenance impact: High-churn areas can cause frustration within teams due to high complexity and the risks associated with modifying these parts of the system.
Practical enhancement:
Predictive analysis: Automate churn tracking using tools that generate alerts when certain modules exhibit excessive change rates. This allows teams to intervene before problems affect productivity.
Refactoring and Simplification: Prioritize the refactoring of these modules to reduce churn, simplify the code, and decrease defect risks.
Visualization techniques:
Using visualization techniques like circle packing and tree maps is crucial for communicating technical debt to non-technical stakeholders.
Key details:
Intuitive visualization: Tornhill emphasizes the importance of visualizing complexity to make technical debt tangible. Techniques like circle packing clearly illustrate which areas of the code are accumulating most of the debt and require immediate attention.
Effective communication: These visualizations help communicate the necessity of managing technical debt to non-technical stakeholders, providing a clear understanding of the business impact.
Practical enhancement:
Presentation for strategic decisions: Use these visualizations in stakeholder meetings to demonstrate how technical debt impacts the team's ability to deliver value quickly.
Visible and actionable metrics: Create graphs that show how reducing complexity through refactoring translates into tangible benefits, such as decreased feature delivery time.
Complexity Trends:
Analyzing complexity trends helps track how problematic areas of the code evolve over time, providing an early indication of potential risks.
Key Details:
The trend over time: Tornhill suggests that monitoring how complexity evolves in hotspots can help predict when the technical debt will reach unsustainable levels.
Priority assessment: Areas with continuously growing complexity should be prioritized for refactoring before reaching a critical point that negatively affects development.
Practical enhancement:
Automated trend analysis: Use tools that automatically monitor complexity trends and generate alerts when growth becomes exponential.
Preventive refactoring: Act before growing complexity hampers productivity, ensuring these areas are treated proactively.
Knowledge maps:
Knowledge maps help visualize which team members possess critical knowledge about specific areas of the code, essential for avoiding bottlenecks.
Key details:
Mapping knowledge: Tornhill suggests creating knowledge maps to avoid dangerous dependencies on specific developers. This involves identifying which areas of the system are only known by a few team members.
Avoiding information silos: Avoiding the concentration of knowledge is crucial to reduce operational risk and ensure development continuity.
Practical enhancement:
Active knowledge distribution: Implement practices like task rotation and mob programming to ensure critical knowledge is distributed among all team members.
Collaborative documentation: Encourage the creation of collaborative documentation to ensure all essential information is recorded and accessible.
Developer activity analysis:
Analyzing developer activity can help identify potential problem areas before they become significant impediments to the project.
Key Details:
Activity patterns: Analyze how developers interact with the code. Tornhill argues that patterns of activity can be a sign of areas that need additional attention or where developers face recurring challenges.
Task distribution: Areas of code with a high concentration of activity may indicate friction points or significant technical debt.
Practical enhancement:
Identifying code stress: Use activity analysis to pinpoint areas that generate stress for developers, indicating that the code is challenging to work with and should be improved.
Resource allocation optimization: Redistribute workload in high-activity areas to prevent developer burnout and improve the quality of life on the project.
Implementation steps
Use tools like Code Maat or similar version control analysis tools to gather metrics, and CodeSence to identify and visualize hotspots.
Make these analyses part of your regular development workflow.
These techniques provide data-driven methods for managing technical debt while enhancing code quality and team productivity.
My final thoughts
Technical debt is a systemic issue that must be addressed through a culture of continuous improvement that is deeply aligned with the principles of Extreme Programming (XP). The tools and practices of XP - such as Test-Driven Development (TDD), pair programming, and continuous refactoring - are not simply techniques; they are the embodiment of a mindset that strives for sustainable, high-quality software development.
Tests are not merely tools to check if the application behaves as expected; they are also indicators of how easy or difficult it is to test the system. If testing the application becomes cumbersome, it can stem from one of two root causes: either a lack of understanding about how to properly test the code or the fact that the code itself is not testable. When code is not testable, it often signals that we are inadvertently creating technical debt, thereby laying the foundation for future legacy code. Treating tests as first-class citizens means that they deserve the same care and attention as production code. Not only do tests validate behavior, but they also highlight areas where the code may be inherently difficult to manage or extend - effectively serving as an early warning system for potential debt accumulation.
Semantic diffusion has led to confusion between related concepts like "technical debt" and "legacy code". While these are interconnected, they have distinct meanings and implications. From my perspective, technical debt and legacy code represent different concepts, but they intersect in meaningful ways. Technical debt generally refers to decisions or shortcuts taken that may compromise long-term quality or maintainability, whereas legacy code, as defined by Michael Feathers in Working Effectively with Legacy Code, is code that lacks sufficient tests to ensure safe changes, making it inherently risky to modify. Legacy code often comes from systems that were built without automated testing in mind, or that evolved over time without adding the tests needed to support ongoing modifications. This lack of testing introduces uncertainty and makes every change potentially hazardous, which in turn slows down development and increases the cost of adding new features. Unlike technical debt, which can sometimes be a conscious decision for short-term gains, legacy code represents a systemic issue that often requires comprehensive test coverage before any meaningful refactoring can be performed. Legacy code carries a high component of risk, which is why people tend to associate it with technical debt. This high risk often makes it challenging to change or improve the system safely, contributing to the perception that legacy code is synonymous with technical debt. Both require refactoring as a remedy, and both indicate a less-than-ideal state of the system - but they do so from different angles. This overlap often leads to confusion, as people may conflate their similarities while ignoring their distinct causes and solutions. For instance, legacy code is often covered by tests to enable safe refactoring, which in turn can help pay down technical debt. However, these activities are not identical, and treating them as such can lead to suboptimal management strategies.
Depending on where you fall within the technical debt quadrant - whether your debt is reckless or prudent, deliberate or inadvertent - the solutions will vary significantly. reckless debt calls for cultural shifts, such as fostering professionalism and a commitment to growth and learning, while prudent debt requires ongoing prioritization and strategic focus to prevent manageable issues from becoming insurmountable.
The frequency with which teams address technical debt is just as critical as the techniques employed. As Martin Fowler articulates in "Frequency Reduces Difficulty", regular, incremental improvements simplify tasks that might otherwise become overwhelming. Continuous refactoring aligns with this philosophy by reducing the "interest" incurred by technical debt and maintaining agility within the system. When developers address technical debt consistently as part of their workflow, the effort becomes manageable, the codebase stays maintainable, and teams avoid the tipping point where technical debt jeopardizes project health.
As Kevlin Henney articulates in his talk "How to Manage Technical Debt", the best way to manage technical debt is to integrate it as a natural part of the development process. Rather than isolating technical debt to specific times or projects, it should be part of daily work - an ongoing, ever-present consideration in all coding activities. This aligns perfectly with the XP philosophy of continuous improvement, emphasizing the need for proactive management.

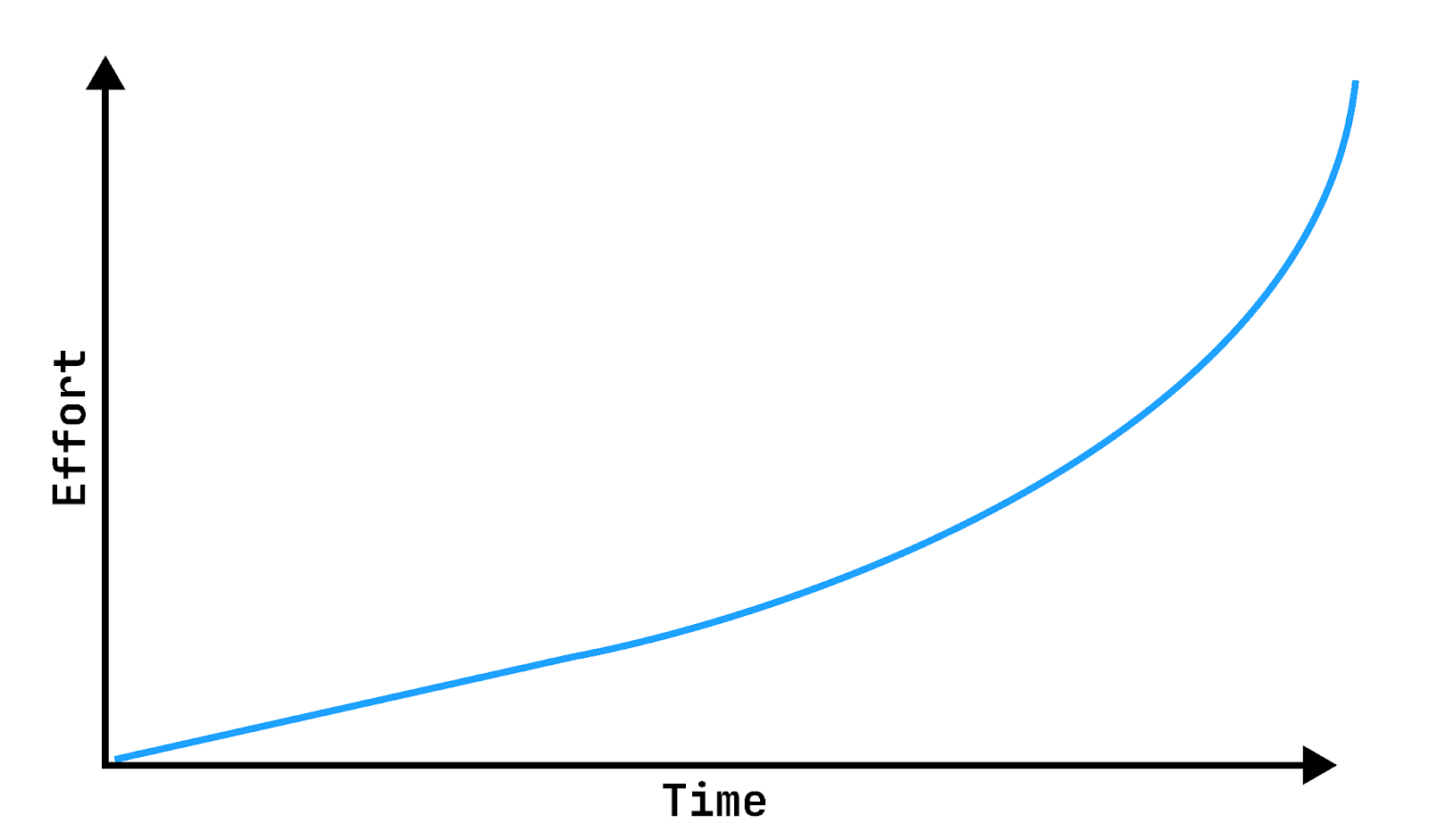

Technical debt on a normal software project where the technical debt is not taken care of.

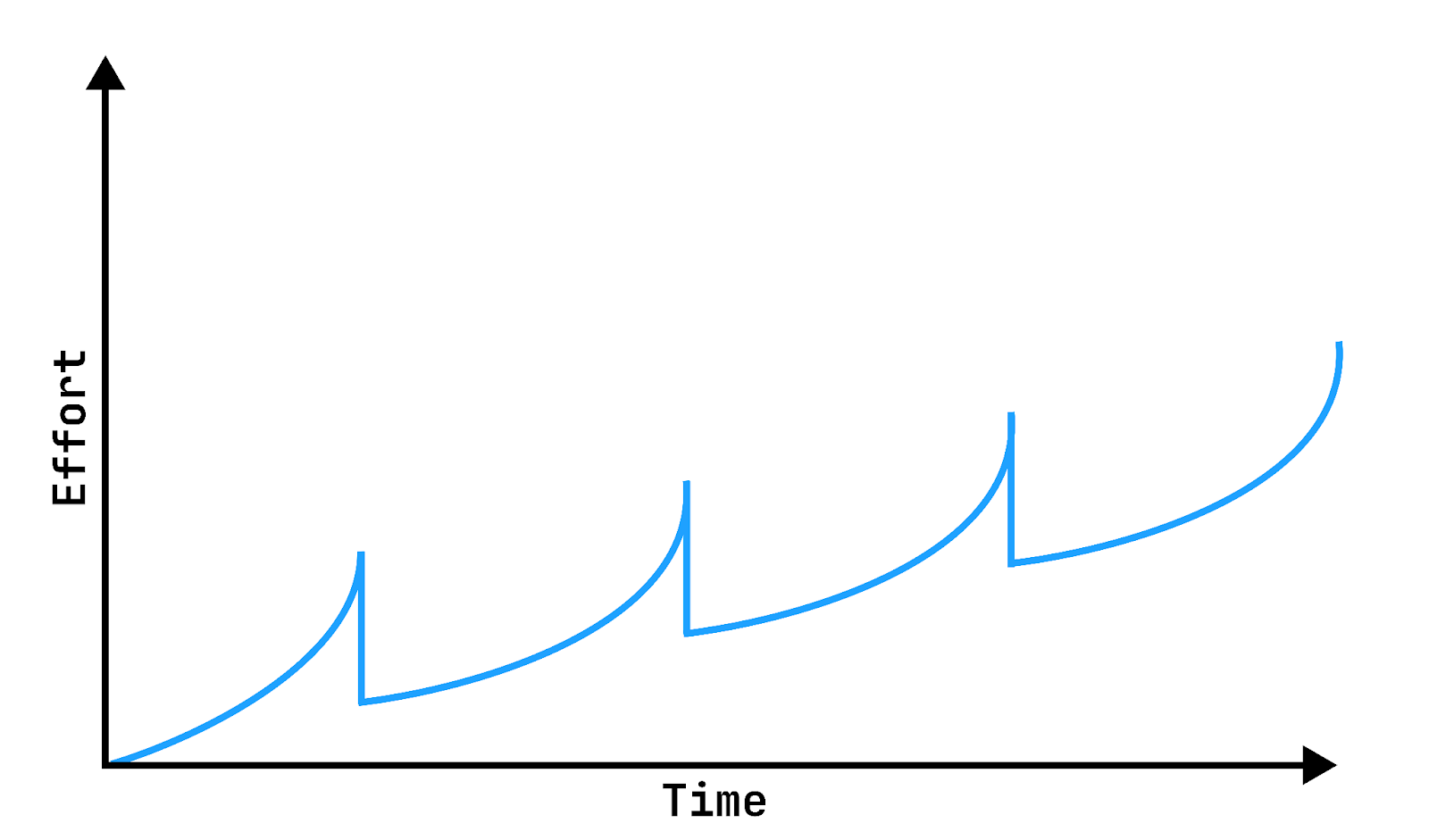

Technical debt on a normal software project where the technical debt is handled only at a certain time in the development cycle.
Technical debt on a normal software project where the technical debt is handled constantly as part of the development cycle and you get a sustainable pace.
Moreover, the concept of waste from lean software development, as described by Mary and Tom Poppendieck, aligns perfectly with addressing technical debt. Waste in software often manifests as rework, unnecessary complexity, or waiting times due to poor code quality. The XP approach to continuous refactoring and quality practices like TDD inherently targets the reduction of such waste, ensuring that value delivery remains efficient, with minimal friction.
The most effective strategy for managing technical debt, then, is to follow the principles of XP: to continuously improve, treat debt as part of daily work, and take a proactive, not reactive, approach. The scout rule - leave the code cleaner than you found it - is an elegant guiding principle that helps manage debt incrementally and systematically. As Martin Fowler points out in his article "Frequency reduces difficulty", integrating challenging tasks into the regular workflow makes them easier over time. This holds true for managing technical debt: the more frequent and integrated the efforts are, the less burden they become.
Broken windows theory also supports this view: small improvements and consistent attention lead to a culture that discourages neglect. Early intervention in fixing "broken windows" (small issues in the code) fosters an environment where quality is valued, and technical debt is minimized. This continuous, incremental approach to improvement is at the heart of XP and is the most sustainable way to deal with technical debt.
Finally, I want to express my heartfelt gratitude to Ricardo Guzmán Velasco, Fernando del Caz Babón, Manuel Rivero (TrikTrok), Javier López Fernández, and Iván Moreno García-Fresneda for their invaluable support, thoughtful feedback, and insightful inputs that greatly enriched this article. Your guidance and encouragement have been instrumental in shaping this work. I also extend my thanks to everyone else who provided feedback and shared their perspectives, your contributions have been deeply appreciated and made a meaningful impact. Thank you for your generosity and collaboration.
Feedback
I really value feedback, so if you wouldn’t mind spending 2 minutes giving me feedback, I would really appreciate it.
References
Fowler, Martin. Semantic Diffusion. https://martinfowler.com/bliki/SemanticDiffusion.html
Fowler, Martin. Technical Debt. https://martinfowler.com/bliki/TechnicalDebt.html
Fowler, Martin. Technical Debt Quadrant. https://martinfowler.com/bliki/TechnicalDebtQuadrant.html
Iglesias, Fran. Testing y TDD para PHP.
Beck, Kent. TDD by Example.
Artola, Luis. Software Economics.
Beck, Kent. Tidy First?.
Brown, Andrew. Taming Your Dragon: Addressing Your Technical Debt.
Fowler, Martin. Refactoring: Improving the Design of Existing Code.
Managing Technical Debt: Reducing Friction in Software Development.
Poppendieck, Mary & Tom. Implementing Lean Software Development: From Concept to Cash.
Bob Salmon. https://randomtechthoughts.blog/2024/10/16/tech-debt-as-risk-of-friction/
Fowler, Martin. Frequency reduces difficulty. https://martinfowler.com/bliki/FrequencyReducesDifficulty.html
Fowler, Martin. Is High-Quality Software Worth the Cost?. https://martinfowler.com/articles/is-quality-worth-cost.html
Farley, Dave. Continuous Delivery: Reliable Software Releases through Build, Test, and Deployment Automation. Addison-Wesley, 2010.
Tornhill, Adam. Your Code as a Crime Scene: Use Forensic Techniques to Arrest Defects, Bottlenecks, and Bad Design in Your Programs (first and second edition). The Pragmatic Programmers.
Tornhill, Adam & Code Red: The Business Impact of Code Quality. https://arxiv.org/abs/2203.04374
Feathers, Michael. Toward a Galvanizing Definition of Technical Debt https://michaelfeathers.silvrback.com/toward-a-galvanizing-definition-of-technical-debt
Cunningham, Ward. Ward Explains Debt Metaphor
https://wiki.c2.com/?WardExplainsDebtMetaphorThirion, Yoan. https://yoan-thirion.gitbook.io/knowledge-base/software-craftsmanship/software-design-x-rays/workshop
